Panasonic FV-WCD01-W Preset Countdown & Hourly Timer On / Off - WhitePanasonic Whispergreen Fans | Products |
Panasonic Preset Count Down Delay off Timer, On/Off, White, wall plate Included.
Preset Countdown Hourly Timer On/Off control allows you to preset the fan to run for a specific period of time (5-60 minutes). It will then shut the fan off automatically for you, making it an ideal product for tenant family use. Advanced, easy-to-use Adjustable Minutes Per Hour (MPH) fan timer is included for ASHRAE 62.2 compliance.
- Preset the fan timer to run from 5-60 minutes
- Minutes per hour fan timer ensures consistent ventilation throughout day for ASHRAE 62.2 compliance
- Manual on/off fan control
- Blue LED indicates fan on
- Commercial grade, 8 amp max load, two-year limited warranty
|Master Carton Dimensions (HxWxD)||10-1/2" x 5-3/4" x 5-1/8"|
|Controls||Ventilation Control. Countdown Timer|
|Dry Contact Switching||24V AC Input/Output|
|Maximum Fan Load||8A|
|Master Carton Gross Weight (lbs.)||0.36|

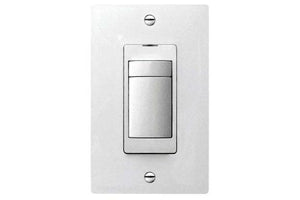

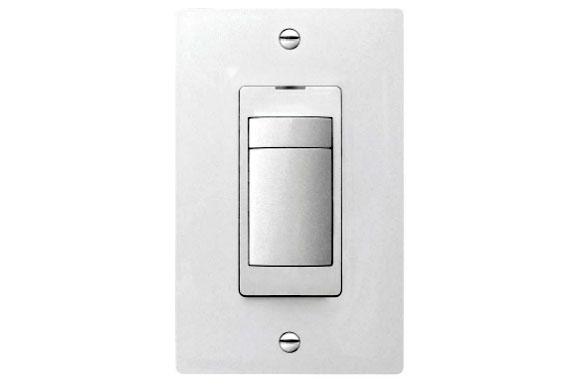

Preset Countdown & Hourly Timer FV-WCDO1-W On/Off Wall Control, White Wall Plate Included
The Preset Countdown and Hourly Timer allows you to preset the fan to run for a specific period of time. It will then shut the fan Off automatically for you, making it an ideal product for tenant and family use. The Preset Countdown and Hourly Timer also includes an advanced, easy-to-use Adjustable Minutes Per Hour (MPH) Fan Timer for ASHRAE 62.2 compliance. It also carries a Commercial Grade quality designation, which means it's engineered to hand current LED lighting and DC motor loads. Additional features include a blue LED light to indicate when the fan is on and a matching wall plate for a decora style design. Can be used to comply with ASHRAE 62.2, LEED and ENERGY STAR®3.0
Pre-Set Countdown Timer
Pre-set the fan timer anywhere from 5 to 60 minutes. When the fan is manually turned ON, the timer will run the fan for the selected period of time then shut the fan OFF automatically for you.
Adjustable Minutes Per Hour (MPH) Fan Timer
Set the MPH fan timer to have the fan come ON for a set amount of time every hour (0-60 mins) for compliance with ASHRAE 62.2. The MPH fan timer provides constant and controlled ventilation every hour. It also sees when you've used the Preset Countdown Timer and will temporarily suspend fan operation to avoid excessive run times. If you want to manually shut the fan off when the MPH timer is running, simply press the fan On/Off button.
Manual On/Off Fan Control
Simply push the switch button for manual on/off operation when immediate ventilation is needed.
Commercial Grade 8 Amp Max Load
Tough and rugged, with a max load capacity of 8 amps, the Preset Countdown and Hourly Timer was engineered to handle current LED lighting and DC motor loads. It also comes with a 2 year limited warranty.
