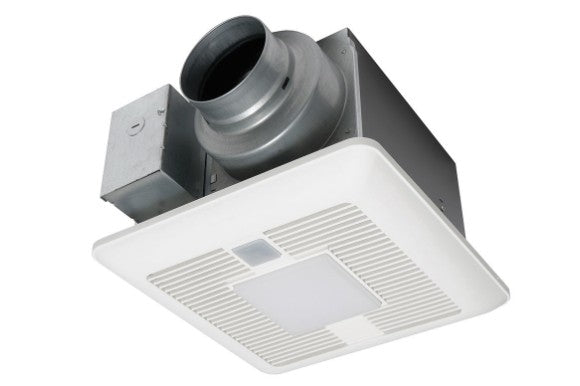

Panasonic FV-0511VQCL1 WhisperSense DC Fan/LED Light, 50-80-110 CFMPanasonic Whispergreen Fans | Products |
Fan/LED light with ECM Motor and Pick‐A‐Flow 50, 80 or 110 CFM, built‐in dual motion and humidity sensors. (LED night light).
WhisperSense® DC™ Precision Spot Ventilation fan/LED Light with built-in Dual Sensor Technology (Motion and Moisture) for automatic moisture and odor control. Features Pick-A-Flow™ speed selector switch to select required airflow (50-80-110 CFM) and ECM Motor with SmartFlow® technology for optimum performance. Can be used to comply with the latest codes and standards.
- Precision spot ventilation fans ideal for use in the bathroom, laundry room, mud room, basement or garage
- Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
- Pick-A-Flow Speed Selector (50-80-110 CFM) combined with SmartFlow™ Technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
- Dual Sensor Technology (Motion & Moisture) provides built-in redundancy for the ultimate in automatic moisture and odor control
- Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
|Static Pressure in inches w.g.||0.1|0.25|0.1|0.25|0.1|0.25|
|Air Volume (CFM)||110|110|80|83|50|50|
|Power Consumption (Watts)||10.9|16.1|6.0|11.0|3.9|7.1|
|Energy Efficiency (CFM/Watt)||10.3|7.0|13.7|7.7|14.1|7.8|
|Speed (RPM) 1342 1480||1016|1268|867|1185|768|1097|
|Power Rating (V/Hz)||120/60|
|Motor Type (AC/DC)||DC|
|Duct Diameter||4" or 6"|
|Mounting Opening (in sq.)||10-1/2"|
|Grille Size (in sq.)||13"|
|MAX. Current (Amps)||0.30|
|Type of Motor Bearing||Ball|
|Thermal Fuse Protection||Yes|
|Blower Wheel Type||Sirocco|
|Lumens Per Watt (LPW)||70|
|Color Temperature (Kelvin)||3,000|
|Color Rendering Index||90|
|Rated Life (hours)||50,000|
|Type of Lamp Socket||LED Chip|
|UL tub/Shower Enclosure||Yes|
|Washington VIAQ Code||Yes|
|California Title 24 Compliant||Yes|
|Mfg in ISO 9001 Certified Facility||Yes|
|Gross Weight (lbs)||11.9|
|ENERGY STAR Qualified||Yes|
The Power of Performance, with Exclusive Smart Sensing Technology
WhisperSense DC is a precision spot ventilation fan that features built-in dual sensor technology (motion & moisture) that provides built-in redundancy for the ultimate in automatic moisture and odor control. WhisperSense DC improves IAQ by effectively removing moist, polluted air from any room. A powerful, yet efficient ECM Motor with SmartFlow™ technology ensures optimum CFM output, regardless of a long or difficult duct run.
ECM Motor with SmartFlow™ Technology
WhisperSense® DC™ is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output.
Pick-A-Flow Speed Technology
Built-in Pick-A-Flow speed selector provides the unique ability to select your required airflow (50-80-110 CFM) with the simple flip of a switch.
Dual Sensor Technology – Motion and Moisture
Three ways the fan can function:
- Motion on/Motion off
- Motion on/Humidity off
- Humidity on/Humidity off
Variable humidity controls from 30-80% Relative Humidity (RH)
Adjustable delay timer from 30 seconds to 60 minutes
Long Life Means Reduced Costs
When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.
The Flex-Z Fast™ Installation Bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. WhisperCeiling DC incorporates an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design.
ENERGY STAR®- Certified for Energy Savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
WhisperSense® DC™ was awarded 2018 Most Efficient. This mark recognizes WhisperSense® DC™ as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®.
