HALO ML4D09NFL935E 4" Recessed ML4D LED Module for Interchangeable 2-inch Round or Square open Trims,3500K,Narrow Flood

HALO ML4 LED Housing + Module + Trim | Products |
SKU: HALO-ML4D09NFL935E

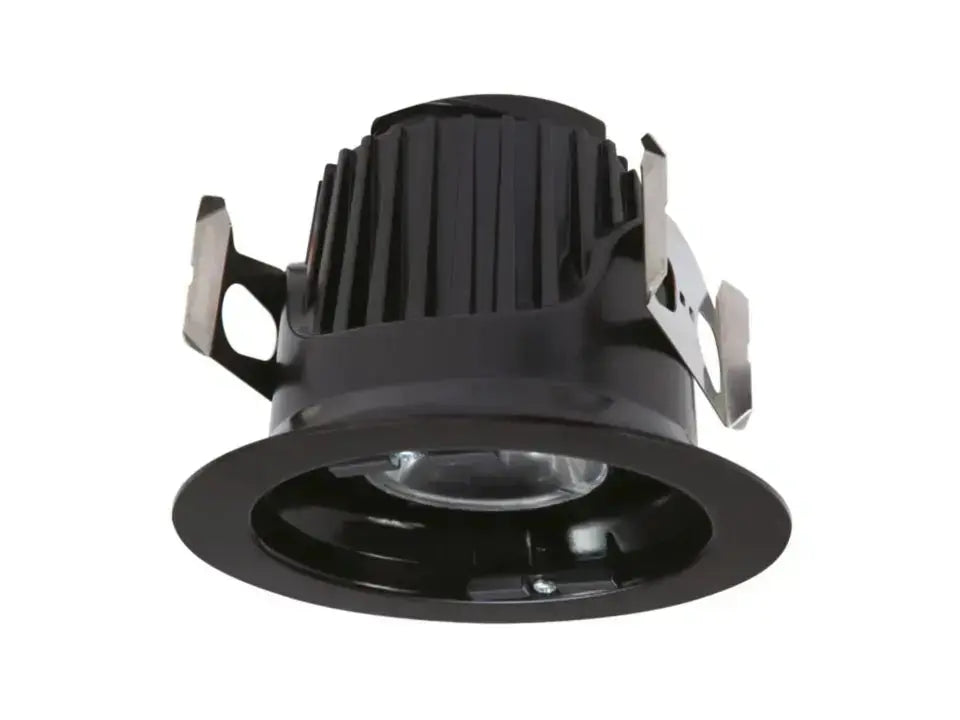

HALO ML4D09NFL935E 4" Recessed ML4D LED Module for Interchangeable 2-inch Round or Square open Trims

Recessed LED module with interchangeable 2-inch round or square open pinhole apertures are available in various finishes to suit any décor. Use with 4-inch nominal recessed housings suitable for residential and shallow plenum commercial construction or can be used to retrofit existing installations. Field interchangeable primary optics provide various distribution patterns and spacing to mounting height ratios. Use for general and task lighting in low to medium height ceilings where energy savings, long life and optical control are required.

Specifications:
Module
• Field interchangeable and upgradable LED module consists of LED array, primary optic and driver.
• Integral die cast aluminum heat sink provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications. Retention
• Heat treated compression springs hold module securely in the housing, can be removed thru the aperture for service or replacement

LED Array
• Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation.
• Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM provide color accuracy and uniformity.
• Compatible with Zhaga book 12 standards for interchangeability and can be replaced in the field Gaskets
• Closed cell gaskets achieve restrictive airflow requirements without additional caulking

Primary Optic
• Precision molded TIR optic organizes source flux into useful beams without stray lumens in the field.
• Two-piece construction with matte black mounting ring and polarized turn and lock mounting aligns optic to source and minimizes backlight in the housing.
• Exceeds ENERGY STAR® color angular uniformity requirements, color deviation is typically less than 0.002 u’ v’.
• Available in narrow flood, flood and wide flood distributions, ordered separately, ships with narrow flood installed.
• Also available in asymmetric distribution providing vertical illumination

Trims
• Die formed steel trims are available in 2-inch round or square pinhole apertures and can be interchanged in the field.
• Available in a broad range of painted or plated finishes, can be painted in the field to match any décor.
• Magnetic attachment holds trim tightly to ceiling and eliminates light leaks.

Driver
• Integral UNV 120 - 277V 50/60 Hz constant current driver provides noise free operation.
• Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers.
• Inline electrical quick connect and E26 adapter (provided) provides mains connection.
• Driver can be replaced in the field.

Compliance
• cULus listed / certified for use with Halo housings, classified for use with other’s housings, see instruction sheet for conditions of acceptability.
• Damp location listed, airtight per ASTM-E283.
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
• EMI/RFI emissions per FCC 47CFR Part 15 B.
• Contains no mercury or lead and RoHS compliant.
• Photometric testing in accordance with IES LM-79-08.
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
• Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listings.
• ENERGY STAR® listed, reference qualified product listings.
• Meets State of California voluntary lamp standards.
• Zhaga book 12 compatible.

Warranty
• Five year limited warranty
