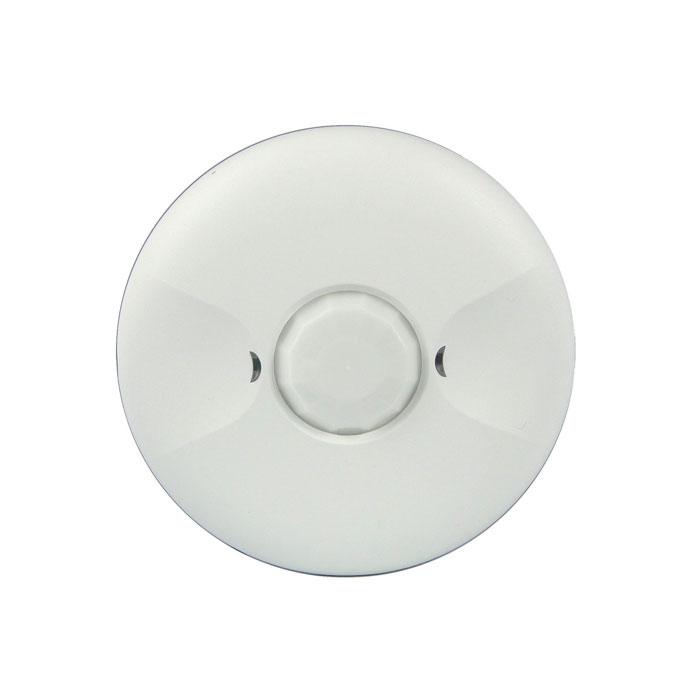

Enerlites MPC-50L-W Low Voltage PIR Ceiling Mount Sensor
Enerlites - Lighting Controls and Wiring Devices | Enerlites Sensors | Products |SKU: MPC-50L-W
The MPC-50L is a Commercial Grade 24VDC Low Voltage Ceiling Mount PIR Occupancy Sensor that turning lights ON/OFF based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient.
Specifications
- Voltage: 24VDC
- Current Consumption: 9mA
- Passive Infrared technology (PIR)
- Adjustable Light Level: 10FC-150FC
- Multi-level, 360° Fresnel lens for superior occupancy detection
- Operating Temperature: 32° to 131°F (0°to 55°C)
- Adjustable Time Delay: 5 sec.-30min (DIP switch)
- Walk-Through Mode: 3 minutes if no activity after 30 sec.
- Test Mode: 5 sec. upon initial power-up or DIP switch reset
- Coverage: 360° degree of view, up to 1200 ft²
- Two-year warranty
- Colors available: White
- Certification: UL/CUL Listed
- California Title 24 Compliant
