EMCOD EGP600P12AC - 600W 12/24V AC - Indoor/Outdoor Dimmable Magnetic Power Supply - Powder Coated Black Steel

EMCOD EGP Indoor/Outdoor Dimmable Magnetic Power Supplies | EMCOD Lighting |
SKU: EGP600P12AC

  • $118.29
    Unit price per
  • Save $47.71



Conforms to UL STD. 2108
Certified to CSA
STD. C22.2 № 250.0,

Spec Sheet

Installation Instructions

Certification

Magnetic Outdoor
Black Powder Coated Steel Enclosure

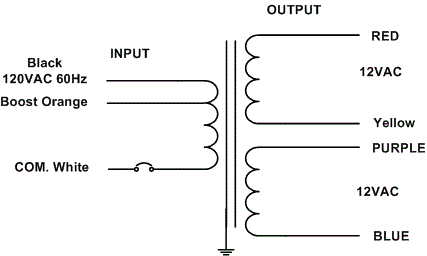

Transformer

Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads are 12AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 8A

Housing

The actual transformer 600W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 9.4, W = 4.6, D = 4.1
Weight (LBs): 0.18

Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 5.3A at full load
Output voltage without load: 12.4/ 24.8VAC
Output voltage fully loaded: 11.8/ 23.8VAC
Max. Total Wattage: 600W Max. per circuit:300W
Max. Output Current: 25/ 12.5A per circuit.
Efficiency: 93%
Load regulation: 0.05%

If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
