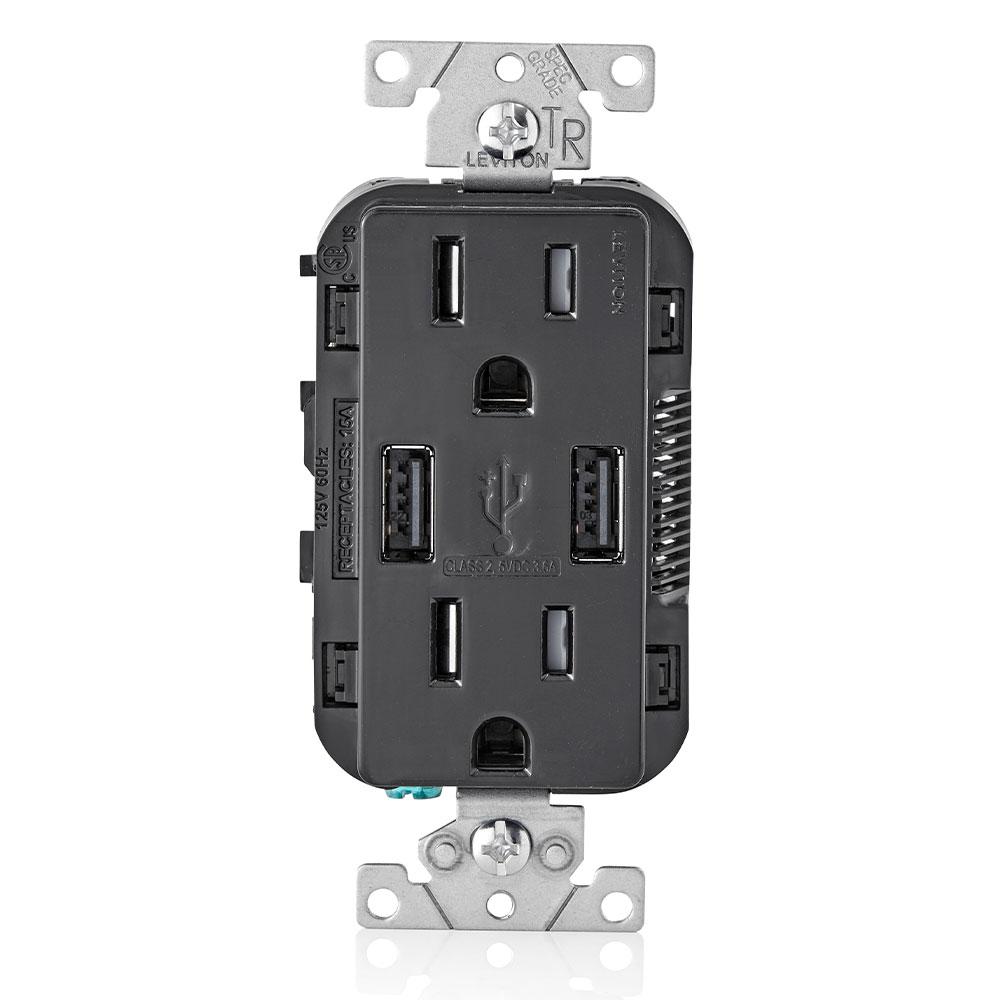

Leviton T5632 - 3.6A USB Type-A/Type-A Wall Outlet Charger with 15A Tamper-Resistant Receptacles

Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Receptacles | Products |
SKU: T5632-W

  • $26.40
    Unit price per
  • Save $14.85

Combination Duplex Receptacle/Outlet and USB Charger. 15 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - White

  • SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
  • POWERFUL – Two high-powered charging ports with 3.6A of charging power
  • CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
  • EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
  • Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
  • Smart chip recognizes and optimizes the charging requirements of individual devices
  • Tested to withstand over 10,000 insertions.
  • Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
  • Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
  • Easy to install. Can replace existing outlets
  • No data transfer capability
  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately



Product Features

Amperage: 15 A
Brand: Decora
Grade: Residential/Commercial Specification Grade
Grounding: Grounding
Horsepower Rating: 15A-1/2 HP
NEMA: 5-15R
Product Type: Outlet/USB Combo
Ratings: 15A-125V
Type: Type A/A Duplex Receptacle
Voltage: 125 VAC
Wallplate: Not Included

Electrical Specifications
Amperage: 15 A
Flammability: Rated V-0 per UL 94
Grounding: Grounding
Horsepower Rating: 15A-1/2 HP
Operating Temperature: -10°C to 40°C
Ratings: 15A-125V

Environmental Specifications
Body Material: Thermoplastic
Color: White
Cover Material: Thermoplastic
Flammability: Rated V-0 per UL 94
Operating Temperature: -10°C to 40°C
Strap Material: Steel

Material Specifications
Body Material: Thermoplastic
Color: White
Cover Material: Thermoplastic
Product ID: Stamped on Strap
Strap Material: Steel
Terminal Accom.: 14-12 AWG
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back & Side
Torque Range: 14 – 18 in.-lbs

Mechanical Specifications
Amperage: 15 A
Color: White
Grade: Residential/Commercial Specification Grade
Product ID: Stamped on Strap
Terminal Accom.: 14-12 AWG
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back & Side
Torque Range: 14 – 18 in.-lbs

Standards and Certifications
FCC Part 15: Class B
Listed: cCSAus
NOM: 057
UL 1310: Yes
UL 498: Yes
Warranty: 2-Year Limited

Downloads

BROCHURE



If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
