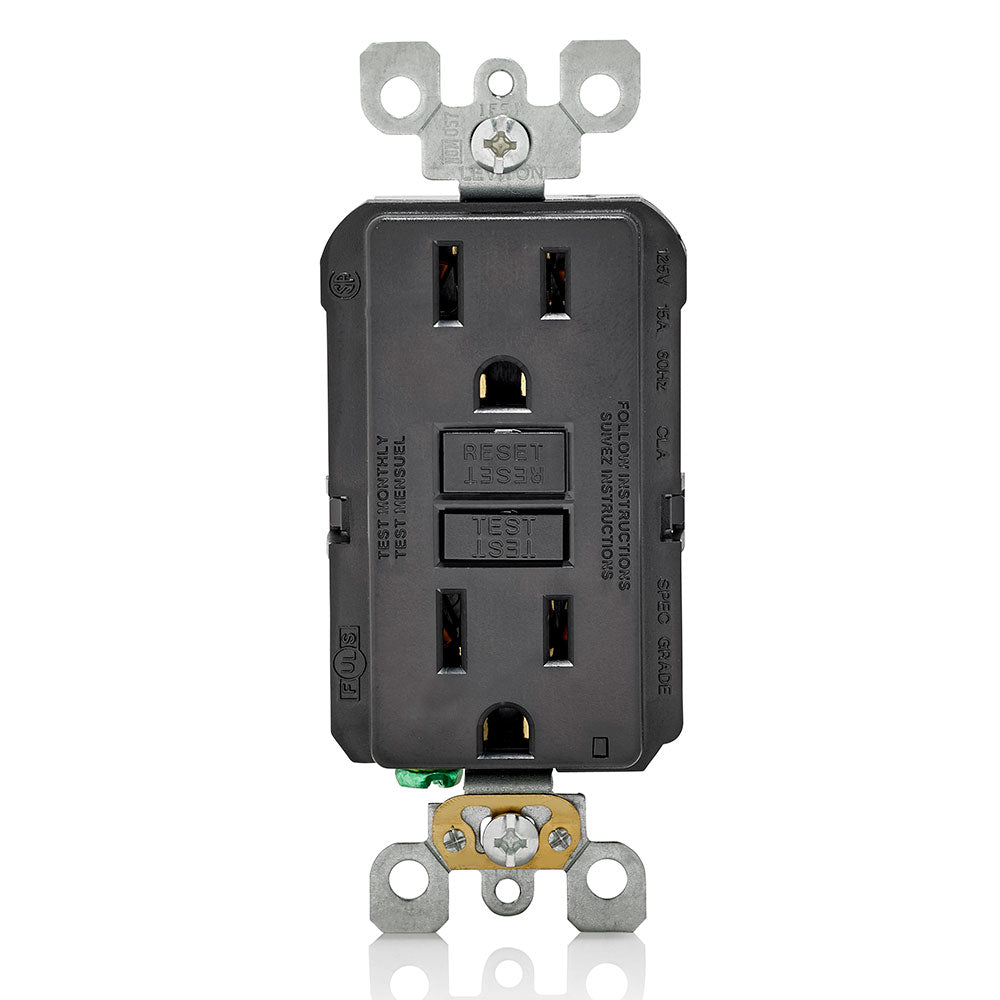

Leviton GFNT1 - 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI
Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Receptacles | Products |SKU: Leviton-GFNT1-W
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, back and side wired, nylon wallplate/faceplate and self grounding clip included
- SAFE - Delivers continuous ground fault protection
- SELF TESTING - Automatically self-tests to ensure it can respond to ground fault
- SIMPLE - Status indicator light provides simple, intuitive feedback
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated.
Product Features
Product Features
Amperage: 15 AAt Rated Voltage: 1 HP
Brand: SmartlockPro
Color: White
Feature: Self-Test
Grade: Residential/Commercial Specification Grade
Grounding: Self-Grounding
NEMA: 5-15R
Pole: 2
Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
Strap Material: Galvanized Steel
Tamper Resistant: No
Termination: Back & Side
Trip Level: Class A, 5mA plus or minus 1mA
Type: Standard Duplex
Voltage: 125 VAC
Wallplate: Included
Warranty: 2-Year Limited
Wire: 3
AC Horsepower Ratings
At Rated Voltage: 1 HPDielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Electrical Specifications
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06Operating Temperature: -35C to +66C
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Environmental Specifications
Body Material: PolycarbonateClamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double Wipe .031 Thick
Notes: w/ Wallplate
Operating Temperature: -35C to +66C
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Material Specifications
Body Material: PolycarbonateClamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double Wipe .031 Thick
Notes: w/ Wallplate
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Body Material: Polycarbonate
Brand: SmartlockPro
Color: White
Face Material: Thermoplastic
Feature: Self-Test
Grade: Residential/Commercial Specification Grade
Grounding: Self-Grounding
NEMA: 5-15R
Notes: w/ Wallplate
Pole: 2
Product ID: Ratings are permanently marked on device
Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
Strap Material: Galvanized Steel
Tamper Resistant: No
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Torque Range: 14 – 18 in.-lbs
Trip Level: Class A, 5mA plus or minus 1mA
Type: Standard Duplex
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3
CSA C22.2 No. 42: Yes
CSA-C22.2 No. 144.1-06: File LR-57811
Fed Spec WC-596: Yes
MIL-SPEC: A-A-55459-SB
NOM: Yes
UL498: Yes
Grounding Screw: Plated Steel
Line Contacts: Brass Double Wipe .031 Thick
Notes: w/ Wallplate
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Mechanical Specifications
Amperage: 15 ABody Material: Polycarbonate
Brand: SmartlockPro
Color: White
Face Material: Thermoplastic
Feature: Self-Test
Grade: Residential/Commercial Specification Grade
Grounding: Self-Grounding
NEMA: 5-15R
Notes: w/ Wallplate
Pole: 2
Product ID: Ratings are permanently marked on device
Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
Strap Material: Galvanized Steel
Tamper Resistant: No
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Torque Range: 14 – 18 in.-lbs
Trip Level: Class A, 5mA plus or minus 1mA
Type: Standard Duplex
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: Yes
CSA-C22.2 No. 144.1-06: File LR-57811
Fed Spec WC-596: Yes
MIL-SPEC: A-A-55459-SB
NOM: Yes
UL498: Yes
