Leviton 6364CR - 50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Connector, Industrial Grade, Grounding, Corrosion-Resistant(CR)  YELLOW - Ready Wholesale Electric Supply and Lighting

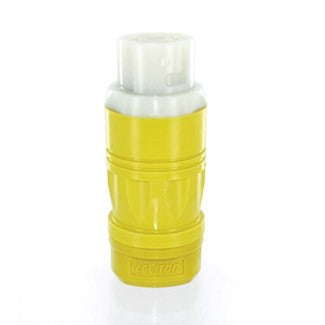

Leviton 6364CR - 50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Connector, Industrial Grade, Grounding, Corrosion-Resistant(CR) – YELLOW

Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Plugs/Connectors | Products |
SKU: 6364CR

  • $116.98
    Unit price per
  • Save $147.19

50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Connector, Industrial Grade, Grounding, Corrosion-Resistant(CR) – YELLOW

Leviton's Black & White 50 Amp, Non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid one-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.


Product Features

Electrical Specifications
Amperage: 50 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage Withstand: 2000V minimum per UL 498
Grounding: Grounding
Maximum Working Voltage: 125/250V as rated
Pole: 3
Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
Voltage: 125/250 VAC
Wire: 4

Environmental Specifications
Environment: Corrosive
Flammability: UL94V-2
Operating Temperature: -40°C to 75°C

Material Specifications
Assembly Screws: Nickel-Plated Brass
Cable Clamp Screw: Philips Head, SS 304
Color: Yellow
Contact - Binding Plate: 0.100inch thick Nickel Plated Brass
Contact - Spring Value: 0.041inch thick Nickel Plated Brass
Contact Rivet: Nickel Plated Brass
Dust Shield: Santoprene TPE
Face Module: Nylon
Ground Post: Nickel Plated Brass
Ground Shunt: Nickel Plated Bronze
Housing Material: Nylon
Standard Cable Clamp: Nylon
Terminal Block: 0.062inch thick Nickel Plated Copper
Terminal Set Screw: SS 302/304
Wiring Chamber: Nylon

Mechanical Specifications
Cord Range: .680 - 1.125
Product ID: Ratings and Catalogue No. molded into face and stamped into shroud
Terminal Accom.: #10 min to #4max AWG Solid or Stranded Wire
Terminal ID: X, W, Y, Z and Green for ground

Product Features
Brand: Black and White
Color: Yellow
NEMA: Non-NEMA

Standards and Certifications
CSA C22.2 No. 42: File 152105
NOM: 057
RoHS: Compliant
UL 498: File E13399
Warranty: Lifetime Limited

Downloads

DIMENSIONAL DATA

INSTRUCTION SHEET
