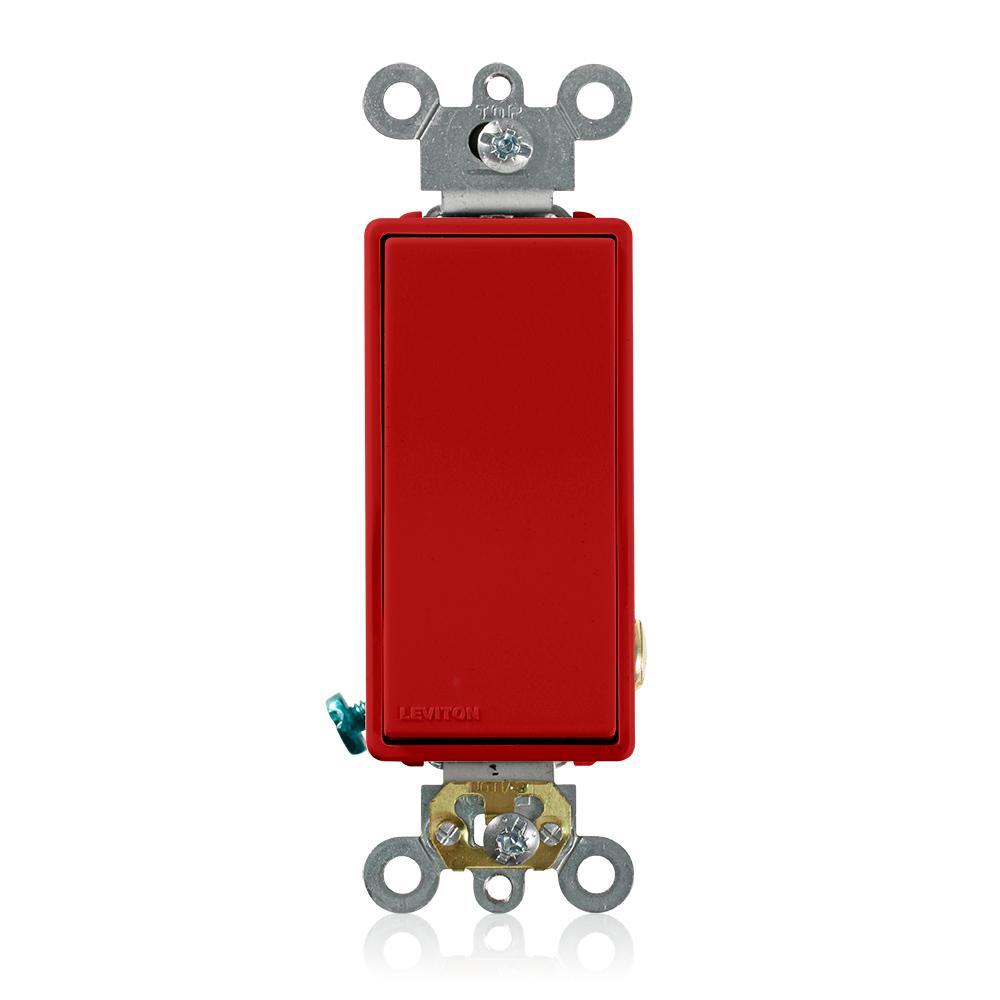

Leviton 5655 - Decora Plus Single Pole Rocker Switch, Momentary Contact, Commercial Specification Grade, 15 A, 125 V, Back and Side Wire, Self-Grounding
Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Switches | Products |SKU: 5655-2W
Decora Plus Single Pole Rocker Switch, Momentary Contact, Commercial Specification Grade, 15 A, 125 V, Back and Side Wire, Self-Grounding
Product Features
Electrical Specifications
Amperage: 15 AEndurance: 30,000 cycles minimum
Grounding: Self-Grounding Clip
Horsepower Rating: 1/2 hp @ 120 V, 2 hp @ 240 V
Overload UL20 Test: 100 cycles of overload at 4.8 times rated current
Temperature Rise: Max 30 °C at full rated current
Voltage: 120/277 VAC
Environmental Specifications
Flammability: Rated V-2 per UL 94Material Specifications
Actuator Material: PolycarbonateBody Material: Polyester
Contact Material: Silver Alloy
Ground Clips: Brass
Grounding Screw: #8 Steel
Strap Material: .050" Galvanized Steel
Terminal Screws: #8 Brass
Termination: Back or Side Wire
Terminal Accom.: #14-#10 AWG
Type: Rocker Switch
CSA C22.2 No. 111: File #152105
Device Type: Rocker Switch
Grade: Commercial Specification Grade
Standards and Certifications: UL/CSA
UL Standard: UL20
Mechanical Specifcations
Product ID: Ratings marked on deviceTerminal Accom.: #14-#10 AWG
Product Features
Pole: 1Type: Rocker Switch
Standards & Certifications
Brand: Decora Plus™CSA C22.2 No. 111: File #152105
Device Type: Rocker Switch
Grade: Commercial Specification Grade
Standards and Certifications: UL/CSA
UL Standard: UL20
Warranty
Warranty: 10-Year LimitedDownloads
