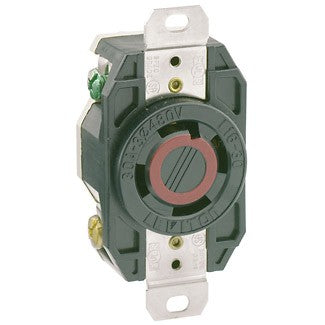

Leviton 2730 - 30 Amp, 480 Volt 3-Phase, NEMA L16-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Plugs/Connectors | Products |SKU: 2730
30 Amp, 480 Volt 3-Phase, NEMA L16-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Product Features
AC Horsepower Ratings
At Rated Voltage: 10 HPElectrical Specifications
Amperage: 30 ACurrent Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Phase: 3-Phase
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 480 VAC
Wire: 4
Environmental Specifications
Environment: CorrosiveFlammability: Rated V-0 per UL 94
Operating Temperature: -40°C to 60°C
Material Specifications
Base Material: ValoxBody Material: Nylon
Color: Black
Cover Material: Valox 357
Face Material: Ultramid
Ground Contacts: Brass
Grounding Screw: Chromated Brass
Line Contacts: Brass
Strap Material: Nickel-Plated Brass
Terminal Clamps: Nickel-Plated Brass
Terminal Screws: Chromated Brass
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 14-8 AWG
Terminal ID: Marked on Device
Termination: Back & Side
Brand: V-0-Max
Color: Black
Device Type: Locking Receptacle
Face Material: Ultramid
NEMA: L16-30R
Warranty: Lifetime Limited
CSA: C22.2 No. 42
NEMA: WD-1 & WD-6
NOM: 057
UL: 498
UL Fed Spec: W-C-596
Terminal Screws: Chromated Brass
Mechanical Specifications
Cord Range: 0.595 to 1.150Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 14-8 AWG
Terminal ID: Marked on Device
Termination: Back & Side
Product Features
Base Material: ValoxBrand: V-0-Max
Color: Black
Device Type: Locking Receptacle
Face Material: Ultramid
NEMA: L16-30R
Warranty: Lifetime Limited
Standards and Certifications
ANSI: C-73CSA: C22.2 No. 42
NEMA: WD-1 & WD-6
NOM: 057
UL: 498
UL Fed Spec: W-C-596
Warranty
Warranty: Lifetime LimitedDownloads
