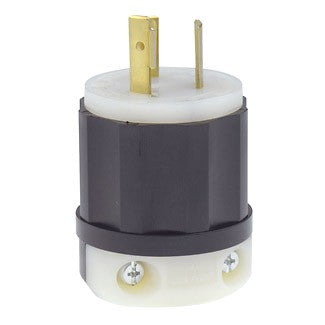

Leviton 2331 - 20 Amp, 277 Volt, NEMA L7-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Plugs/Connectors | Products |SKU: 2331
20 Amp, 277 Volt, NEMA L7-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Leviton’s industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Product Features
AC Horsepower Ratings
Horsepower Rating: 2 HPElectrical Specifications
Amperage: 20 ACurrent Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 277 VAC
Wire: 3
Environmental Specifications
Flammability: Rated HB or better UL94Operating Temperature: -40°C to 60°C
Material Specifications
Assembly Screws: Steel, Zinc PlatedBack Cover: Thermoplastic
Blades/Contacts: Solid Brass
Body Material: Impact Modified Nylon
Clamp Insert: Nylon
Color: Black-White
Cord-Clamp: Nylon
Terminal Screws: Brass
Wire Module: Nylon
Product ID: Ratings are permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Wire Gauge: 16-10 AWG
NEMA: L7-20P
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
UL498: File E13393
Warranty: Limited Lifetime Warranty
Terminal Screws: Brass
Wire Module: Nylon
Mechanical Specifications
Cord Range: 0.385 to 0.720Product ID: Ratings are permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Wire Gauge: 16-10 AWG
Product Features
Color: Black-WhiteNEMA: L7-20P
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
UL498: File E13393
Warranty: Limited Lifetime Warranty
