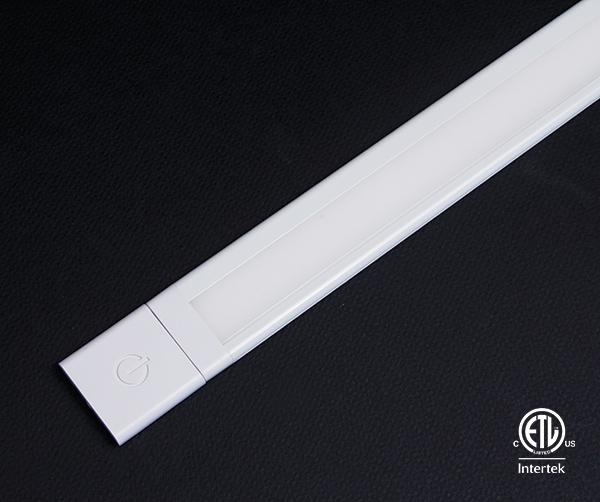

GM Lighting SlimEdge EDGE-32-27-W 24VDC 32" 2700K Modular Architectural Lightbar - WhiteGM Lighting | GM Lighting SlimEdge 24VDC Architectural LED Dimmable Lightbar | GM Lighting Undercabinet LED Lightbars | Products |
|Catalog No.||Length||Watts/Fixture||Lumens/Fixture||Color Temp.*||Finish|
|EDGE-32-27-W||32" / 1100mm||13W||750
SlimEdge™ is a 24VDC architectural LED linear thin lightbar that is the next evolution in undercabinet lighting. Using high-tech Edgelite technology - SlimEdge creates an even luminance while producing a gentle, soft light. 90+ CRI optics that present no diode imaging on polished surfaces. Available in 8”, 16”, 24” or 32” in white or bronze. Utilizing the wide array of connectors, SlimEdge can be configured to adapt to virtually any application.
NOTE: In order to use the Touch Dimmer (EDGE-TD-W or B) from the fixture, you must use GM DPPS Series Plug-In Power Supplies. We have included a DPPS spec sheet below, in the Spec Sheet Download area.
Power Supply / Transformers Used With This Product
- Rigid modular edge lit lightbar
- 0-90° with optional mounting clip
- Mounting clips and screws included
- Units join securely together with modular connectors
- Class 2. Maximum run on a given lead is 16'
- 24VDC remote power supply required
- Rated at 5W per foot
- 50,000 hr. operation
- Edge-lit technology results in diode-free imaging on polished surfaces
- 90+ CRI
- 2700K, 3000K
- 5 year warranty
* Kelvin Temp. (color) ±200K
Includes (2) mounting clips with screws, (1) lightbar to power supply connector (GMC-PS-24) and (1) rigid bar to bar connector (EDGE-BB-1) included with each lightbar. NOTE: White bar is supplied with white connectors. Bronze bar is supplied with black connectors.
If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
