EMCOD MLE200-24DC-UD - 200W 24V DC- Dimmable Electronic LED Driver

EMCOD Lighting | EMCOD MLE-UD Series - Main-LED Electronic Universal Driver | Products |
SKU: MLE200-24DC-UD

  • $196.69
    Unit price per
  • Save $79.31


E498696
Conforms to UL STD. 8750 and 1310
Certified to CSA
STD. C22.2 № 250.0
model MLE200-24DC-UD

Spec Sheet

Installation Instructions

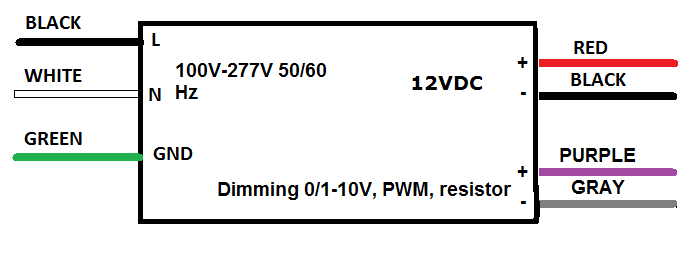

Transformer

Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C

Housing

The actual transformer 200W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 5.2, W = 9.99, D = 1.82
Weight (LBs): 3

Electrical Parameters

Input Voltage: 100-277V 50/60Hz
Max. input current: 2.3A at full load
Output voltage without load: 24.1VDC
Output voltage fully loaded: 24VDC
Max. Total Wattage: 200W
Max. Output Current: 8.3A
Efficiency: 87%
Load regulation: 1%
Ripple: 5%

If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
