EMCOD - ML50S24AC Transformer - Magnetic LED Driver - 50W - 24VAC
EMCOD Lighting - LED drivers, Lighting and Transformers | EMCOD ML - MAG-LED Series | Products |SKU: ML50S24AC
Class 2 Magnetic LED AC Driver Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
4008104 |
Conforms to UL STD. 1310 |
Certified to CSA STD. C22.2 № 223 |
|
model EM35 | |
Class 2 Magnetic LED AC Driver Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure
Transformer
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 1.25A
Thermal self reset secondary breaker 4A
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 1.25A
Thermal self reset secondary breaker 4A
Housing
The actual transformer 50W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 3 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7, W = 2.11, D = 1.54
Weight (LBs): 2.25
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 3 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7, W = 2.11, D = 1.54
Weight (LBs): 2.25

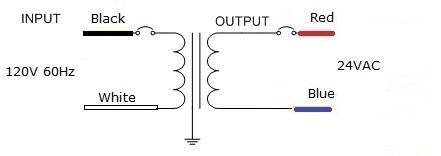

Electrical Parameters
Input Voltage: | 120V 60Hz |
Max. input current: | 0.5A at full load |
Output voltage without load: | 26.2VAC |
Output voltage fully loaded: | 23.6VAC |
Max. Total Wattage: | 50W |
Max. Output Current: | 2A |
Efficiency: | 85% |
