EMCOD ESL75W - 75W 12/15V AC - Manual Timer Landscape Low Voltage LED Lighting Transformer - Ready Wholesale Electric Supply and Lighting

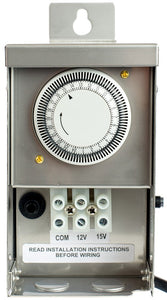

EMCOD ESL75W - 75W 12/15V AC - Manual Timer Landscape Low Voltage LED Lighting Transformer

EMCOD ESL - EPC Stainless Steel Landscape Low Voltage Lighting Transformer | EMCOD Lighting |
SKU: ESL75W

  • $75.49
    Unit price per
  • Save $30.51



Conforms to UL STD. 1838
Certified to CSA
STD. C22.2 № 250.0, 250.7

Spec Sheet

Installation Instructions

Magnetic Outdoor Non Dimmable MT
Stainless Steel Enclosure

Transformer

Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Thermal manually reset secondary breaker 1200A
Timer and photocell build in options

Housing

The actual transformer 75W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8.5, W = 3.75, D = 4.4
Weight (LBs): 0.5

Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 75A at full load
Output voltage without load: 12/ 15VAC
Output voltage fully loaded: 11.5/ 14.5VAC
Max. Total Wattage: 75W
Max. Output Current: 6.2/ 5A
Efficiency: 90%
