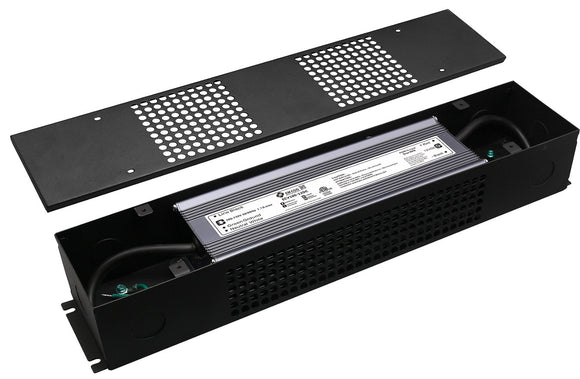

EMCOD ECV100-12DC - 100W 12V DC - Dimmable Electronic Constant Voltage LED Driver

EMCOD ECV - Constant Voltage Series | EMCOD Lighting | Products |
SKU: ECV100-12DC

  • $102.59
    Unit price per
  • Save $41.41


4010300
Conforms to UL STD. 1310
Certified to CSA
STD. C22.2 № 223

Spec Sheet

Installation Instructions

Class 2 Electronic Triac Dimmable
Plastic Suitable For Dry And Damp Location Enclosure

Transformer

Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C

Housing

The actual transformer 100W is encapsulated in the enclosure
The enclosure is Aluminum with wire compartment, IP 67 rated
Wiring compartment has 4 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 14.3, W = 3.03, D = 2.24
Weight (LBs): 0.37

Electrical Parameters

Input Voltage: 120V 50/60Hz
Max. input current: 1.6A at full load
Output voltage without load: 12.2VDC
Output voltage fully loaded: 12VDC
Max. Total Wattage: 100W
Max. Output Current: 8A
Efficiency: 85%
Load regulation: 1%
Ripple: 10%

If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
