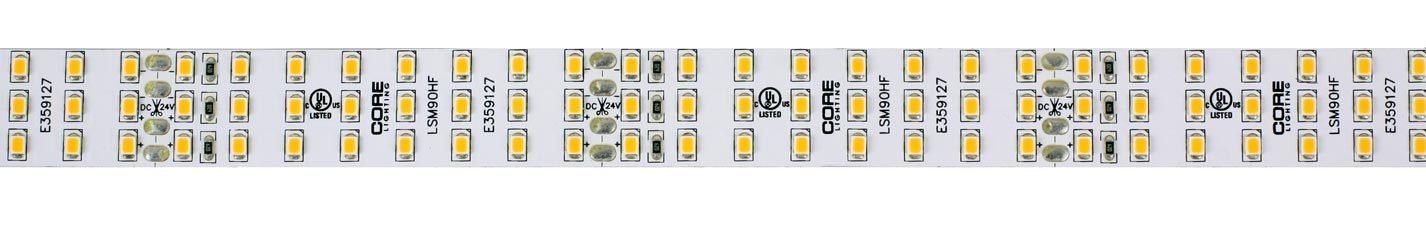

Core Lighting LSM-90HF SERIES 930 LUMENS 7.9W FLEXIBLE LED STRIP

Core Lighting - Architectural-Grade LED Lighting Solutions | Core Lighting Indoor LED Tape | Products |
SKU: LSM-90HF-25K-16FT-24V

$501.84
Unit price per
Save $401.47

LSM-90HF SERIES
7.9W/FT 930 LUMENS

LSM90HF Super High Output / High-Efficiency strip is designed to produce more than 930 lumens at 7.9 Watts per foot. This field cuttable LED strips are offered in a low profile design that can be attached almost anywhere and are great for many common lighting applications, such as cove lighting or cabinets. LSM90HF series produces a 120° light beam spread and is offered in different color temperatures to fit your speciﬁc needs. UL listed.

FEATURES

■ 24V DC Constant Voltage
■ 7.9W/Ft.
■ 930 Lm/Ft.
■ 96 LEDs/Ft.
■ 120º Beam Spread
■ 90+ CRI
■ MAX RUN: 24 Ft.
■ CUTTING LENGTHS: every 3.2″
■ California TITLE 24 JA8 Compliant
■ IP45 Indoor (DRY) Location
■ Multiple CCT options available
■ Architectural grade LED lighting
■ Suitable for linear lighting applications

SPECIFICATION SHEETS

SPEC SHEET (PDF)

DC PLUGIN ACCESSORIES (PDF)

INSTRUCTIONS

BASIC WIRING GUIDE (PDF)

If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
