Leviton 520 - 20 Amp, 125 Volt, NEMA 5-20P, 2-Pole, 3-Wire Grounding Plug, Straight Blade - Ready Wholesale Electric Supply and Lighting

Leviton 520P - 20 Amp, 125 Volt, NEMA 5-20P, 2-Pole, 3-Wire Grounding Plug, Straight Blade

Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Plugs/Connectors | Products |
SKU: 520PV

  • $5.71
    Unit price per
  • Save $4.69

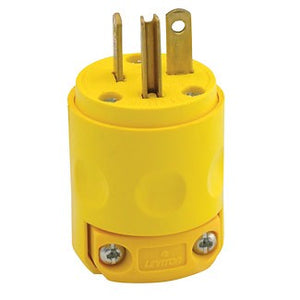

Leviton NEMA 5-20P Plug

20 Amp, 125 Volt, NEMA 5-20P, 2-Pole, 3-Wire Grounding Plug, Straight Blade

Product Features

Electrical Specifications
Amperage: 20 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications
Assembly Screws: Steel, Zinc Plated
Blades/Contacts: Brass
Body Material: PVC
Color: Yellow
Mechanical Specifications
Cord Range: .245 - .655
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 18-12 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Product Features
Color: Yellow
Cord Range: .245 - .655
NEMA: 5-20P

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File LR-406
NOM: 057
UL498: File E13393
Warranty: 2-Year Limited




IEC 60309 "CLOCK"


If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
