EMCOD MLE30-24DC-UD - 30W 24V DC- Dimmable Electronic LED Driver

EMCOD Lighting | EMCOD MLE-UD Series - Main-LED Electronic Universal Driver |
SKU: MLE30-24DC-UD

  • $69.79
    Unit price per
  • Save $28.21


E498696
Conforms to UL STD. 8750 and 1310
Certified to CSA
STD. C22.2 № 250.0
model MLE30-24DC-UD

Spec Sheet

Installation Instructions


Transformer

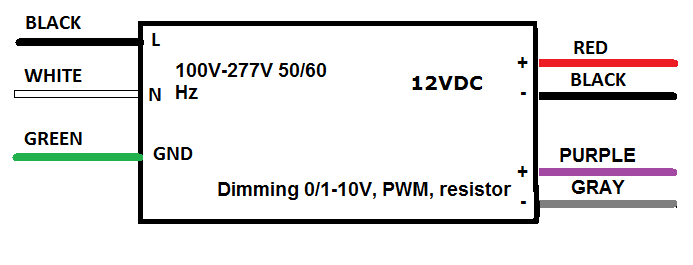

Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C

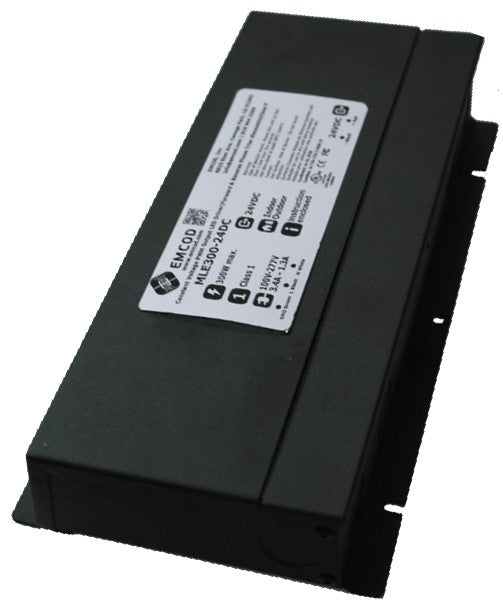

Housing

The actual transformer 30W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 4.47, W = 6.79, D = 1.38
Weight (LBs): 1.8

Electrical Parameters

Input Voltage: 100-277V 50/60Hz
Max. input current: 0.3A at full load
Output voltage without load: 24.1VDC
Output voltage fully loaded: 24VDC
Max. Total Wattage: 30W
Max. Output Current: 1.2A
Efficiency: 87%
Load regulation: 1%
Ripple: 5%

If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
