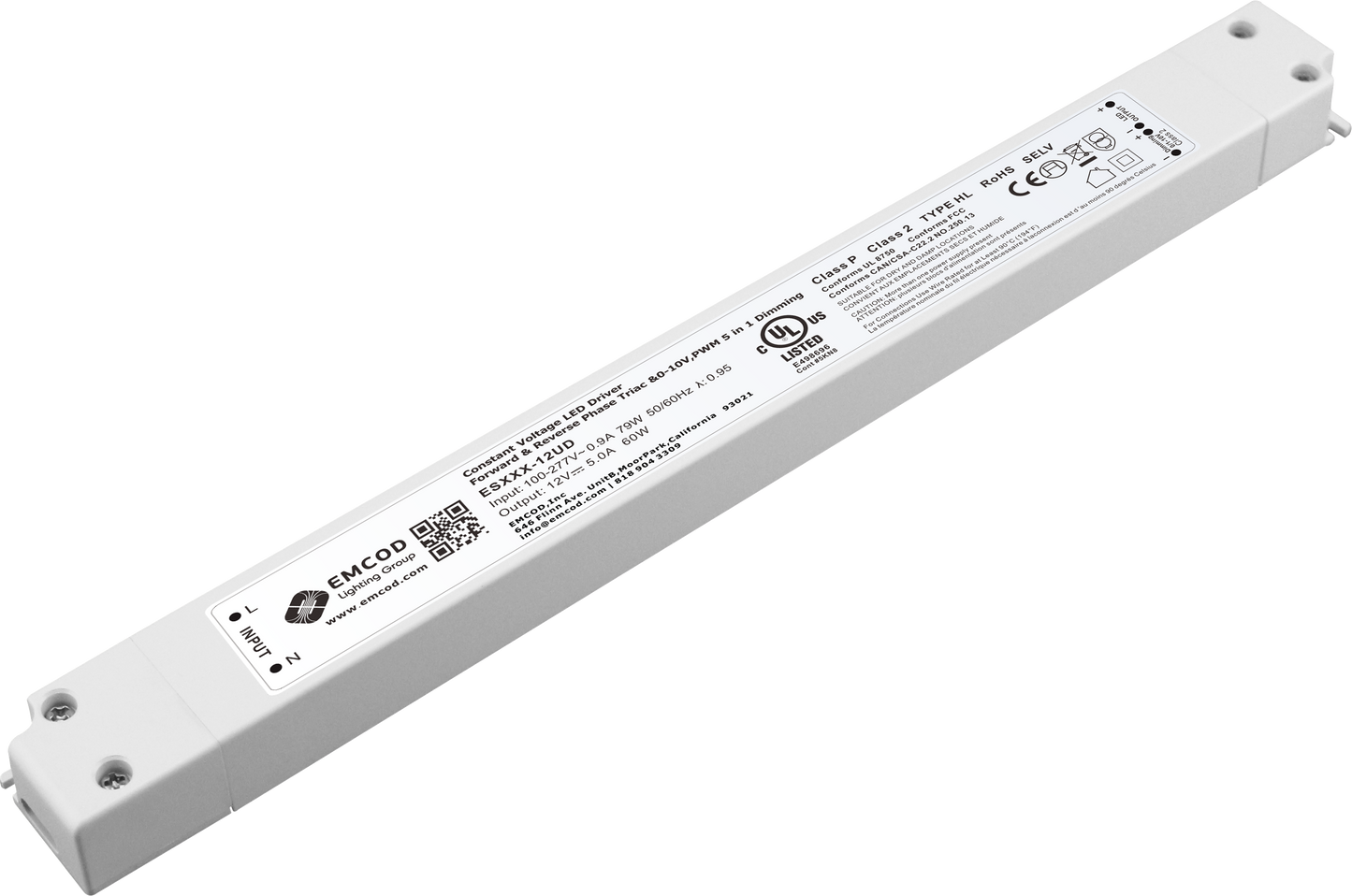

Emcod ES100-12UD Series Class 2 Electronic UNIV 5 in 1 dimming

Emcod ES100-12UD Series Class 2 Electronic UNIV 5 in 1 dimming

$141.40 USD
$141.40 USD $282.80 USD

EMC-ES100-12UD

Default Title
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Technical Specification

Plastic Suitable For Dry And Damp Location Enclosure

Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads: Terminal Block
Output leads: Terminal Block


Housing
The actual transformer 30W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with wire compartment, IP 20 rated
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded
Dimensions (inch): H = 12.7, W = 1.18, D = 0.85
Weight (LBs): 0.73


Single Circuit: 12VDC 20kHZ PWM
Total Wattage: 100W max
Input Voltage: 100-277V 50/60Hz
