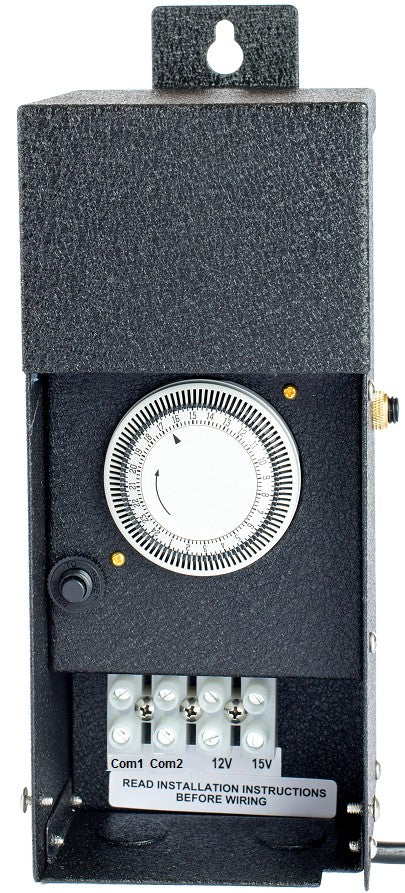

EMCOD EPC300W - 300W 12/15V AC - Manual Timer Landscape Low Voltage LED Lighting Transformer

EMCOD EPC Landscape Low Voltage Lighting Transformer | EMCOD Lighting | Products |
SKU: EPC300W

  • $115.39
    Unit price per
  • Save $46.61



Conforms to UL STD. 1838
Certified to CSA
STD. C22.2 № 250.0, 250.7

Spec Sheet

Installation Instructions

Magnetic Outdoor Non Dimmable MT
Black Powder Coated Steel Enclosure

Transformer

Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Timer and photocell build in options

Housing

The actual transformer 300W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 12.25, W = 4.75, D = 4.8
Weight (LBs): 1.4

Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 2.5A at full load
Output voltage without load: 12/ 15VAC
Output voltage fully loaded: 11.5/ 14.5VAC
Max. Total Wattage: 300W
Max. Output Current: 25/ 20A
Efficiency: 90%
