Corona Lighting CL-513 Directional Lights, Aluminum Louvered w/ Yoke

Corona Lighting CL-513 Directional Lights, Aluminum Louvered w/ Yoke

COR-CL-513-BK

Color

This product may have been updated and we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

These items don’t display pricing because they require a custom quote.

Product Information

Overview

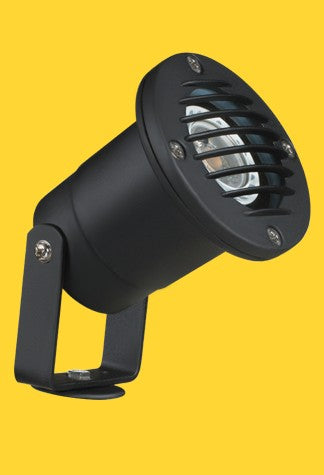

The CL-513 Aluminum Louvered directional light features diecast aluminum housing with a durable polyester UV powder coat finish available in Black (BK) or Natural Brass (BR). It includes a clear, tempered, heat-resistant glass lens with a silicone gasket for weather-tight protection. The fixture has a top-grade ceramic bi-pin socket with a retention clip and comes prewired with a 3-ft direct burial cord. It is compatible with 12V MR-16 halogen, LED, and LED color lamps. The adjustable cast aluminum knuckle includes a Philips-shaped screw and ½" NPT threaded male hub on the bottom. Mounting is via an 8" black ABS spike with a ½" NPT threaded female hub.

Technical Specification

Model
CL-513
Housing
Diecast Aluminum
Finish
Polyester UV Powder Coated; BK - Black (Standard), BR - Natural Brass (Optional)
Lens
Clear, Tempered, Heat Resistant Glass with Silicone Gasket
Socket
Top Grade Ceramic Bi-Pin Socket with Retention Clip
Lamp
12V MR-16 Halogen, 50W Max; L-BAB-C20 (20W) Standard; Compatible with LED, LED(Color), and Halogen Lamps
Wiring
Prewired with 3-ft 18-2 SPT2-W Direct Burial Cord; Wire Connector Sold Separately (Universal Connector CX-839, Silicone Filled Wire Nut CX-854)
Gasket
Silicone "O" Ring Seal for Weather-Tight Protection
Knuckle
Cast Aluminum Adjustable Knuckle with Philips Shaped Screw; ½" NPT Threaded Male Hub on Bottom
Mounting
8" Black ABS Spike with ½" NPT Threaded Female Hub
Voltage Range
Halogen: 11-12.5V; LED: 9-17V
Warranty
One (1) Year Warranty on Fixture Housing Against Manufacturer's Defects
Transformer
Remote 12 Volt Transformer Required

Additional Information

  • Fixture is supplied with 20W MR-16 lamp
  • Proper greasing and lubrication of threaded parts is recommended for installation
  • When ordering, add the 2-letter color code (BK or BR) to the end of the product number

    See transformers and accessories for a variety of options and choices
