Corona Lighting CL-512 Directional Lights, Aluminum Hooded w/ Yoke

Corona Lighting CL-512 Directional Lights, Aluminum Hooded w/ Yoke

COR-CL-512-BK

Color

This product may have been updated and we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

These items don’t display pricing because they require a custom quote.

Product Information

Overview

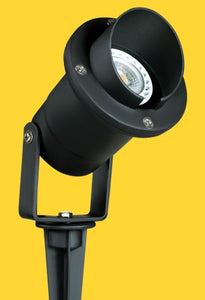

The CL-512 Aluminum Hooded directional light features a diecast aluminum housing with a durable polyester UV powder coat finish available in Black (BK) or Natural Brass (BR). It includes a clear, tempered, heat-resistant glass lens and offers optional special effect lenses such as honeycomb louver and frosted lens CX-380-FR. The fixture has a top-grade ceramic bi-pin socket with retention clip and comes prewired with a 3-ft direct burial cord. It is compatible with 12V MR-16 halogen, LED, and LED color lamps. The adjustable cast aluminum knuckle includes a Phillips-shaped screw and ½" NPT threaded male hub on the bottom. Mounting is via an 8" black ABS spike with a ½" NPT threaded female hub.

Technical Specification

Model
CL-512
Housing
Diecast Aluminum
Finish
Polyester UV Powder Coated; BK - Black (Standard), BR - Natural Brass (Optional)
Lens
Clear, Tempered, Heat Resistant Glass; Optional Special Effect Lenses Available
Socket
Top Grade Ceramic Bi-Pin Socket with Retention Clip
Lamp
12V MR-16 Halogen, 50W Max; L-BAB-C20 (20W) Standard; Compatible with LED, LED(Color), and Halogen Lamps
Wiring
Prewired with 3-ft 18-2 SPT2-W Direct Burial Cord; Wire Connector Sold Separately (Universal Connector CX-839, Silicone Filled Wire Nut CX-854)
Gasket
Silicone "O" Ring Seal for Weather-Tight Protection
Knuckle
Cast Aluminum Adjustable Knuckle with Phillips Shaped Screw; ½" NPT Threaded Male Hub on Bottom
Mounting
8" Black ABS Spike with ½" NPT Threaded Female Hub
Voltage Range
Halogen: 11-12.5V; LED: 9-17V
Warranty
One (1) Year Warranty on Fixture Housing Against Manufacturer's Defects
Transformer
Remote 12 Volt Transformer Required

Additional Information

Fixture is supplied with 20W MR-16 lamp

Proper greasing and lubrication of threaded parts is recommended for installation

When ordering, add the 2-letter color code (BK or BR) to the end of the product number

See transformers and accessories for a variety of options and choices
