Panasonic FV-WCD02-W Preset Countdown, Hourly Timer On / Off / Light - White - Ready Wholesale Electric Supply and Lighting

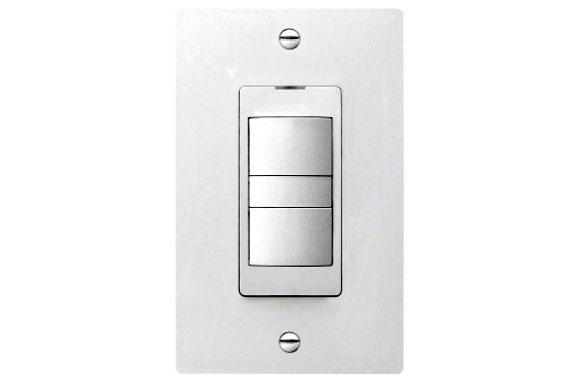

Panasonic FV-WCD02-W Preset Countdown, Hourly Timer On / Off / Light - White

Panasonic Fans | Products |
SKU: FV-WCDO2-W

  • $49.99
    Unit price per
  • Save $11.31

Panasonic Preset Count Down Delay off Timer, On/Off/Light, White, wall plate Included.
PRODUCT DETAILS

Preset Countdown Hourly Timer On/Off/Light control allows you to preset the fan to run for a specific period of time (5-60 minutes). It will then shut the fan off automatically for you, making it an ideal product for tenant family use. Advanced, easy-to-use Adjustable Minutes Per Hour (MPH) fan timer is included for ASHRAE 62.2 compliance. Includes on/off light switch.

KEY FEATURES
  • Preset the fan timer to run from 5-60 minutes
  • Minutes per hour fan timer ensures consistent ventilation throughout day for ASHRAE 62.2 compliance
  • Manual on/off fan and light control
  • Blue LED indicates fan on
  • Commercial grade, 8 amp max load, two-year limited warranty



    Product Specifications

    Specification Description
    Amperage 15A
    Master Carton Dimensions (HxWxD) 10-1/2" x 5-3/4" x 5-1/8"
    Controls Ventilation Control. Countdown Timer
    Dry Contact Switching 24V AC Input/Output
    Features Blue LED
    Ground Grounding
    Maximum Fan Load 8A
    Maximum Fluorescent Light Load 400W
    Voltage 120V
    Master Carton Gross Weight (lbs.) 0.36



    Resources



    Preset Countdown & Hourly Timer FV-WCDO2-W On/Off/Light Wall Control, White Wall Plate Included

    The Preset Countdown and Hourly Timer allows you to preset the fan to run for a specific period of time. It will then shut the fan Off automatically for you, making it an ideal product for tenant and family use. The Preset Countdown and Hourly Timer also includes an advanced, easy-to-use Adjustable Minutes Per Hour (MPH) Fan Timer for ASHRAE 62.2 compliance. It also carries a Commercial Grade quality designation, which means it's engineered to hand current LED lighting and DC motor loads. Additional features include a blue LED light to indicate when the fan is on and a matching wall plate for a decora style design. Can be used to comply with ASHRAE 62.2, LEED and ENERGY STAR®3.0



    Pre-Set Countdown Timer

    Pre-set the fan timer anywhere from 5 to 60 minutes. When the fan is manually turned ON, the timer will run the fan for the selected period of time then shut the fan OFF automatically for you.



    Adjustable Minutes Per Hour (MPH) Fan Timer

    Set the MPH fan timer to have the fan come ON for a set amount of time every hour (0-60 mins) for compliance with ASHRAE 62.2. The MPH fan timer provides constant and controlled ventilation every hour. It also sees when you've used the Preset Countdown Timer and will temporarily suspend fan operation to avoid excessive run times. If you want to manually shut the fan off when the MPH timer is running, simply press the fan On/Off button.



    Manual On/Off Fan Control

    Simply push the switch button for manual on/off operation when immediate ventilation is needed.



    Commercial Grade – 8 Amp Max Load

    Tough and rugged, with a max load capacity of 8 amps, the Preset Countdown and Hourly Timer was engineered to handle current LED lighting and DC motor loads. It also comes with a 2 year limited warranty.

    If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
