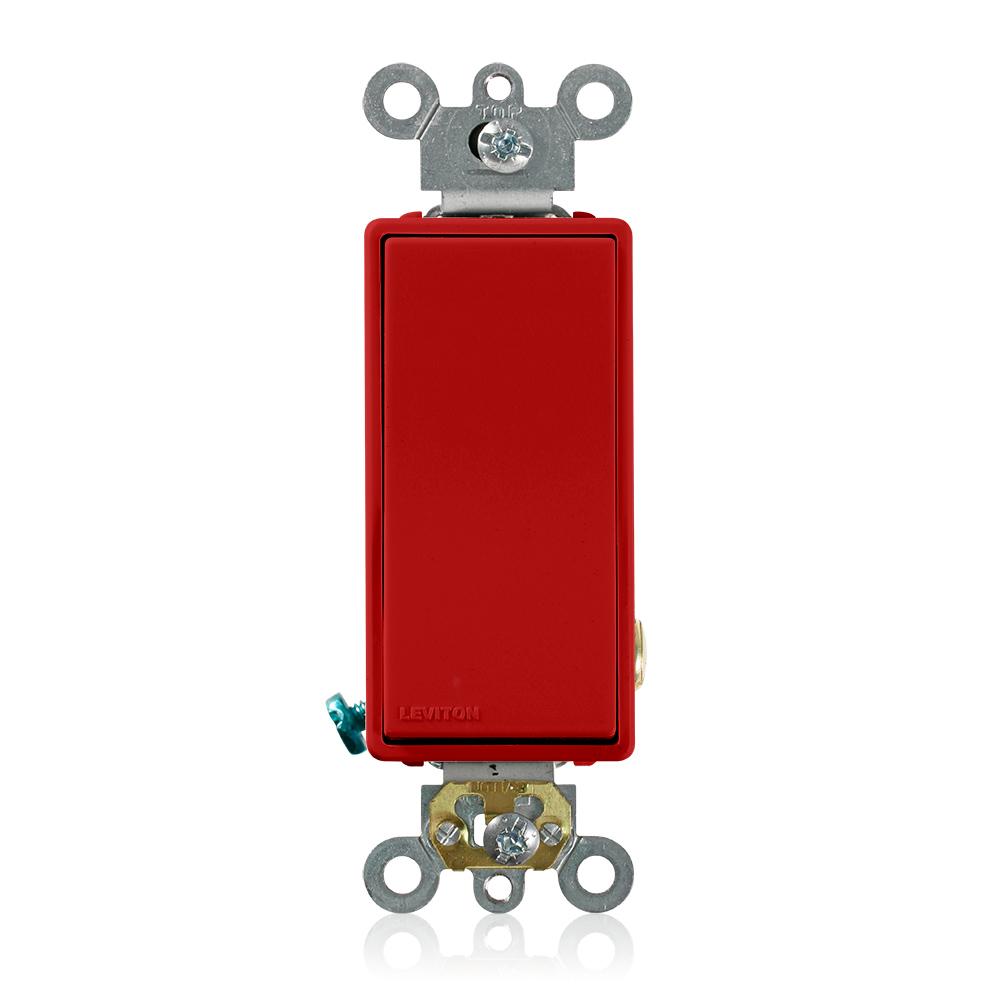

15 Amp, 120/277 Volt, Decora Plus Rocker Double-Throw Ctr-OFF Maintained Contact Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired

Decora Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.


Product Features

AC Horsepower Ratings
HP Rating: 1/2HP-120V 2HP-240V-277V
Max. Amperage: 12 Amp

Electrical Specifications
Amperage: 15 A
Dielectric Voltage: Withstands 1500V for 1 minute
Endurance: 30,000 cycles minimum
Grounding: Self-Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120/277 VAC

Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C

Material Specifications
Actuator Material: Thermoplastic
Body Material: Thermoplastic
Color: White
Strap Material: Steel

Mechanical Specifications
Product ID: Stamped on Strap
Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds

Product Features
Brand: Decora Plus
Color: White
Device Type: Rocker Switch
Feature: Maintained Contact CTR OFF
Function: Single-Pole Double-Throw
Grade: Commercial Specification Grade
Grounding: Self-Grounding
HP Rating: 1/2HP-120V 2HP-240V-277V
Voltage: 120/277 VAC

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Standard: UL 20
Warranty: 10-Year Limited

Downloads

DIMENSIONAL DATA

WIRING DIAGRAM

INSTRUCTION SHEET
