EMCOD - ML20S24DC Transformer - Magnetic LED Driver - 20W - 24VDC
EMCOD Lighting - LED drivers, Lighting and Transformers | EMCOD ML - MAG-LED Series | Products |SKU: ML20S24DC
Class 2 Magnetic Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
4008104 |
Conforms to UL STD. 1310 |
Certified to CSA STD. C22.2 № 223 |
|
model EM20 | |

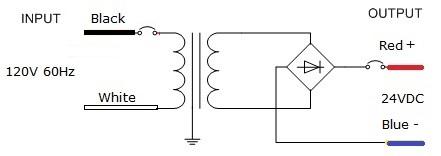

Transformer
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on emcod.com Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 0.8A
Thermal self reset secondary breaker 1.5A
Housing
The actual transformer 20W is encapsulated in the enclosure

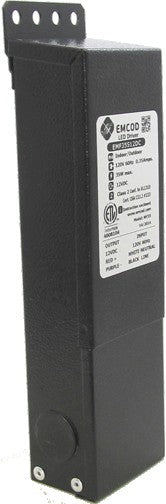

The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable connectors Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded Dimensions (inch): H = 7.38, W = 2.11, D = 1.6 Weight (LBs): 1.6
Electrical Parameters
Input Voltage: | 120V 60Hz |
Max. input current: | 0.22A at full load |
Output voltage without load: | 27VDC |
Output voltage fully loaded: | 23.5VDC |
Max. Total Wattage: | 20W |
Max. Output Current: | 0.8A |
Efficiency: | 83% |
