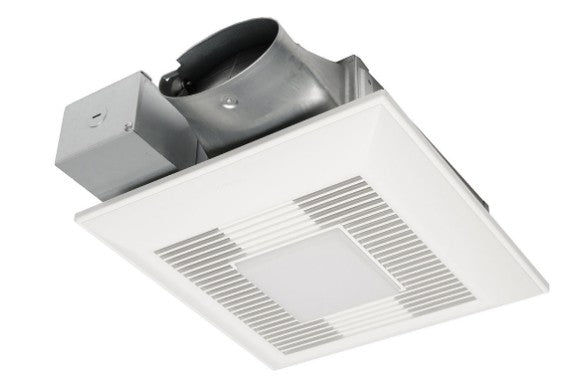

Panasonic FV‐0510VSCL1 WhisperValue DC Fan / Light Condensation Sensor

Panasonic Whispergreen Fans - Ventilation Fans | Products |
SKU: FV‐0510VSCL1

  • $213.99
    Unit price per
  • Save $99.01

Fan/LED light with ECM Motor and Pick‐A‐Flow, 50, 80 or 100 CFM, Built‐in Condensation
Sensor (LED chip panel incorproates night light).

PRODUCT DETAILS

WhisperValue® DC™ Fan/LED light with built-in condensation sensor helps control bathroom moisture while preventing mold and mildew. As the lowest profile ENERGY STAR® rated ventilation fan available it is ideal for all types of residential and multi-family construction. Features our revolutionary ECM motor with SmartFlow™; technology to remove unhealthy air from any space. Pick-A-Flow™ airflow selector switch enables you to customize airflow settings at your choice of 50, 80 or100 CFM.

KEY FEATURES
  • Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
  • Pick-A-Flow™ Airflow Selector – one fan, you choose the CFM (50, 80 or 100 CFM)
  • Lighted models incorporate one 10W dimmable LED chip panel with <1W LED opional night light for warm, energy efficient illumination
  • Optional built-in Multi-Speed Control for ASHRAE 62.2 compliance
  • Built-in Condensation Sensor to control bathroom moisture

      Product Specifications

      Specification Description
      Air Volume Exhaust (CFM) 50 @ 0.1" SP, 52 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101 @ 0.25" SP
      Master Carton Dimensions (HxWxD) 9.06 x 14.17 x 16.93
      CFM 50-70. 80-110
      Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
      Color Rendering Index 90
      Color Temperature (Kelvin) 3,000
      Construction Type Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling
      Current (Amps) 50 CFM= .08A, 80 CFM= .13A, 100 CFM=.18A
      Ventilation Design Approach Continuous Ventilation. Spot Ventilation
      Duct Diameter 4" Oval
      Energy Efficiency (CFM/Watt) 50 CFM= 12.1 CFM/W, 80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W
      ENERGY STAR® Certified Yes
      Fan Type Fan Only
      Grille Size (in sq.) 13"
      Industry Residential. Light Commercial
      Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
      Lamp Watts 10
      Lumens (lm) 700
      Lumens Per Watt (LPW) 70
      Motor Type (AC/DC) ECM
      Mounting Opening (in sq.) 10-1/2"
      Mounting Options Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
      Night Light 0.2
      Noise (Sones) 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
      Power Consumption (Watts) 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W
      Power Rating (V/Hz) 120/60
      Product Family Name WhisperValue DC
      Radiation Damper Available Yes
      Rated Life (hours) 50,000
      Type of Lamp Socket LED chip
      UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
      Warranty 6 year DC Motor, 3 Year Parts
      Master Carton Gross Weight (lbs.) 9.0



      Downloads



      WhisperValue DC with light and built-in condensation sensor

      WhisperValue® DC™ Fan/LED Light is the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it fits perfectly in a 2x4 stud bay. The low profile, 3-3/8” housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere - in ceilings or walls.

      High performance ECM motor

      The revolutionary ECM motor provides the best performing, most energy efficient motor available. Intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in a duct run and automatically adjusts the fan speed to deliver the optimal CFM output,even in complicated duct runs. The Panasonic ECM motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.

      Smart Flow ECM Technology

      Pick-A-Flow™ airflow technology

      Built-in Pick-A-Flow airflow selector provides the unique ability to select your required airflow (50-80-100 CFM) with the simple flip of a switch.

      Condensation sensor

      Condensation Sensor helps control bathroom condensation to prevent mold and mildew. Sensor technology detects relative humidity and temperature to anticipate dew point, automatically turning the fan on to control humidity. Built-in Relative Humidity (RH) sensitivity adjustment enables fine tuning for moist conditions and for satisfying CALGreen requirements. The fan will run for 20 minutes before turning off.

      Lowest profile design for installation versatility

      With a 3-3/8" housing depth WhisperValue DC is slimmest design available. The extremely thin profile opens up options for where you can install the fan, which is UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won't need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings.

      LED lamps provide warm, energy efficient illumination

      WhisperValue® DC™ fan/light models feature a contemporary flush mount grille that incorporates one 10W Dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination. Panel specifications include: 3000 Kelvin Warm White/90CRI/700 lumens/70 LPW/ENERGY STAR 2.0 certified/50,000 hours rated average life."

      Long life and lower operating costs

      Whether you're running a household or a business, you shouldn't have to replace little things like a vent fan. Panasonic fans use less energy, move larger volumes of air and run cooler, which means they last longer. Our motors are equipped with a thermal-cutoff fuse, greatly reducing the likelihood of overheating and motor failure.

      Fast, flexible, professional installations

      Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fans are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R), sold separately.

      ENERGY STAR® certified for energy savings

      Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.

      Energy Star Certified Most Efficient 2020
