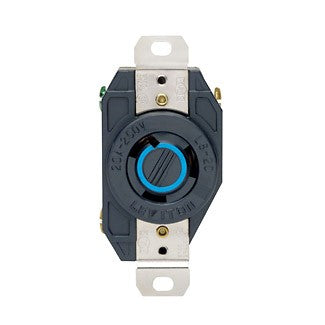

Leviton 2320 - 20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Plugs/Connectors | Products |SKU: 2320
20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for data centers, PDUs, and generators
Product Features
AC Horsepower Ratings
At Rated Voltage: 2 HPHorsepower Rating: 2 HP
Electrical Specifications
Amperage: 20 ACurrent Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 250 VAC
Wire: 3
Environmental Specifications
Flammability: Rated V-0 per UL 94Operating Temperature: -40°C to 60°C
Material Specifications
Base Material: Valox, ValoxBody Material: Nylon
Color: Black
Cover Material: Valox 357
Face Material: Ultramid, Ultramid
Ground Contacts: Brass
Grounding Screw: Chromated Brass
Line Contacts: Brass
Strap Material: Nickel-Plated Brass
Terminal Screws: Chromated Brass
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 14-8 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Torque Range: 14-16 in-lbs
Color: Black
Face Material: Ultramid, Ultramid
NEMA: L6-20R
Warranty: Limited Lifetime Warranty, Limited Lifetime Warranty
CSA: C22.2 No. 42
NEMA: WD-1 & WD-6
NOM: 057
UL: 498
UL Fed Spec: W-C-596
Warranty: Limited Lifetime Warranty
Mechanical Specifications
Cord Range: 0.385 to 0.780Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 14-8 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Torque Range: 14-16 in-lbs
Product Features
Base Material: Valox, ValoxColor: Black
Face Material: Ultramid, Ultramid
NEMA: L6-20R
Warranty: Limited Lifetime Warranty, Limited Lifetime Warranty
Standards and Certifications
ANSI: C-73CSA: C22.2 No. 42
NEMA: WD-1 & WD-6
NOM: 057
UL: 498
UL Fed Spec: W-C-596
