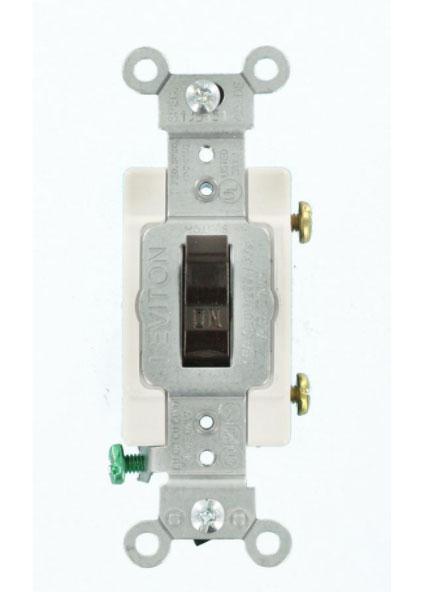

Leviton CS315 - 15 Amp, 120/277 Volt, Toggle 3-Way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired
Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Switches | Products |SKU: CS315-2W
Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Product Features
AC Horsepower Ratings
HP Rating: 1/2HP-120V 2HP-240V-277VElectrical Specifications
Amperage: 15 ADielectric Voltage: Withstands 1500V for 1 minute
Max. Amperage: 12 Amp
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120/277 VAC
Environmental Specifications
Flammability: Rated V-2 per UL94Operating Temperature: -40°C to 65°C
Material Specifications
Actuator Material: ThermoplasticBase Material: PBT
Body Material: Thermoplastic
Color: White
Contacts: Silver-Cadmium .031 Thick
Cover Material: Nylon
Strap Material: Steel
Terminal Screws: Steel 8-32
Toggle: Polycarbonate
Mechanical Specifications
Product ID: Stamped on Strap
Terminal Accom.: 14-12 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side Wire
Torque Range: 12-14 inch pounds
Color: White
Device Type: Toggle Switch
Function: 3-Way
Grade: Commercial Specification Grade
HP Rating: 1/2HP-120V 2HP-240V-277V
Voltage: 120/277 VAC
Warranty: 10-Year Limited
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Fed Spec WS896E: File #E7458
UL Standard: UL 20
Warranty: 10-Year Limited
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side Wire
Torque Range: 12-14 inch pounds
Product Features
Actuator Material: ThermoplasticColor: White
Device Type: Toggle Switch
Function: 3-Way
Grade: Commercial Specification Grade
HP Rating: 1/2HP-120V 2HP-240V-277V
Voltage: 120/277 VAC
Warranty: 10-Year Limited
Standards and Certifications
ANSI: C-73CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Fed Spec WS896E: File #E7458
UL Standard: UL 20
Warranty: 10-Year Limited
