Product Information

Overview

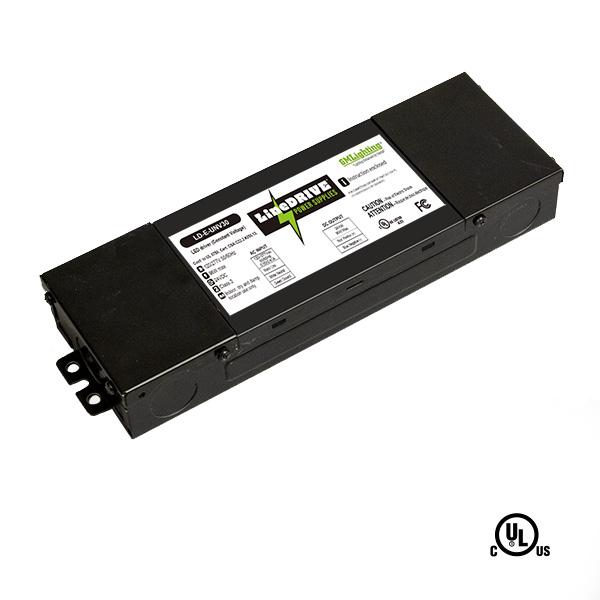

The GM Lighting LineDRIVE LD-E-UNV300-24 is a 24VDC, 288W electronic LED non-dimmable power supply designed for select LED fixtures that do not require dimming. It is Class 2 rated, features auto reset protection, and is enclosed in a low-profile powder-coated steel housing with multiple knock-outs for easy installation. Ideal for applications such as LTR-S RGBW tape lighting.

Technical Specification

Model
LD-E-UNV300-24
Output Voltage
24VDC
Input Voltage
120V or 277V / 60Hz
Power
288W (3 x 96W channels)
Class
Class 2
Dimensions
9.50" L x 6.35" W x 1.56" H
Dimming
Non-Dimmable
Enclosure
Powder Coated Steel, Low Profile
Protection Features
Auto Reset, Over Voltage, Short Circuit
Certifications
FCC Compliant, UL Listed
Additional Features
IP20 for Damp Location, ±5% Voltage Tolerance at Full Load

Additional Information

  • Suitable for use with LTR-S RGBW tape lighting
  • Includes 4 knock-outs for flexible installation
  • Designed for damp locations with IP20 rating
