EMCOD MLE180C2-12UD - 3X60W 12V DC- Dimmable Electronic LED Driver

EMCOD MLE180C2-12UD - 3X60W 12V DC- Dimmable Electronic LED Driver

$246.40 USD
$246.40 USD $492.80 USD

EMC-MLE180C2-12UD

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Technical Specification


E498696
 Conforms to UL STD. 8750 and 1310
Certified to CSA
STD. C22.2 № 250.0
model MLE180C2-12DC

Spec Sheet

Installation Instructions

Transformer

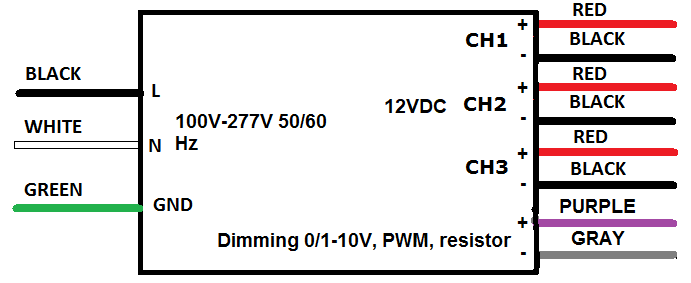

Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C
per circuit

Housing

The actual transformer 180W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 8 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 5.04, W = 10.94, D = 1.81
Weight (LBs): 4.4

Electrical Parameters

Input Voltage: 110-277V 50/60Hz
Max. input current: 1.8A at full load
Output voltage without load: 12.1VDC
Output voltage fully loaded: 12VDC
Max. Total Wattage: 180W Max. per circuit:60W
Max. Output Current: 5A per circuit.
Efficiency: 90%
Load regulation: 1%
Ripple: 5%

Additional Information
