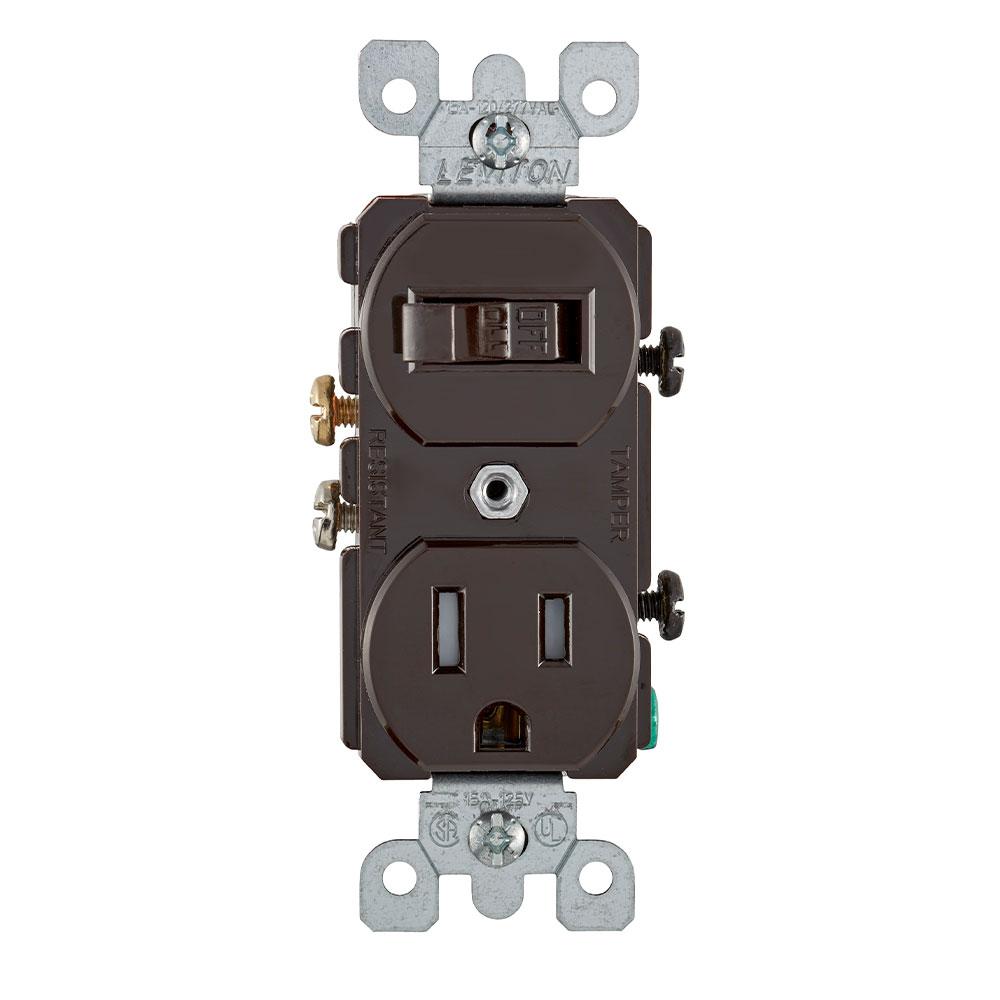

Leviton T5225 - Tamper-Resistant Duplex Style Single-Pole / 5-15R Combination Switch

Leviton | Leviton Receptacles | Leviton Switches | Products |
SKU: T5225-W

  • $14.17
    Unit price per
  • Save $7.97

15 Amp, 120 Volt, Tamper Resistant, Duplex Style Single-Pole / 5-15R AC Combination Switch, Commercial Grade, Grounding, Side Wired

Leviton's standard combination switch/receptacle is the perfect choice for any area in a home. Its simple, functional design provides the use of a switch and a tamper-resistant receptacle in a one-gang space. Its impact-resistant exterior ensures damage protection and a long service life. These devices come in a range of colors and are backed by a limited two-year warranty.


Product Features

AC Horsepower Ratings
HP Rating: 1/2HP-120V
Max. Amperage: 12 Amp

Electrical Specifications
Dielectric Voltage: Withstands 1500V for 1 minute
Grounding: Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Receptacle Amperage: 15 Amp
Receptacle Voltage: 125V AC
Switch Amperage: 15 Amp
Switch Voltage: 120V AC
Temperature Rise: Maximum 30 degrees C rise

Environmental Specifications
Operating Temperature: -40°C to 65°C

Material Specifications
Actuator Material: Thermoplastic
Body Material: Thermoplastic
Color: White
Strap Material: Steel

Mechanical Specifications
Product ID: Stamped on Strap
Terminal Accom.: 14-12 AWG
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Side
Torque Range: 14 – 18 in.-lbs

Product Features
Amperage: 15 A
Color: White
NEMA: 5-15R
Product Type: Switch/Outlet Combo
Type: Duplex Style Combination Switch

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Standard: UL 20
Warranty: 2-Year Limited


Downloads

PRODUCT BULLETIN

INSTRUCTION SHEET

INSTRUCTION SHEET (FRENCH)

INSTRUCTION SHEET (SPANISH)

PRODUCT CLEANING INSTRUCTIONS



If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
