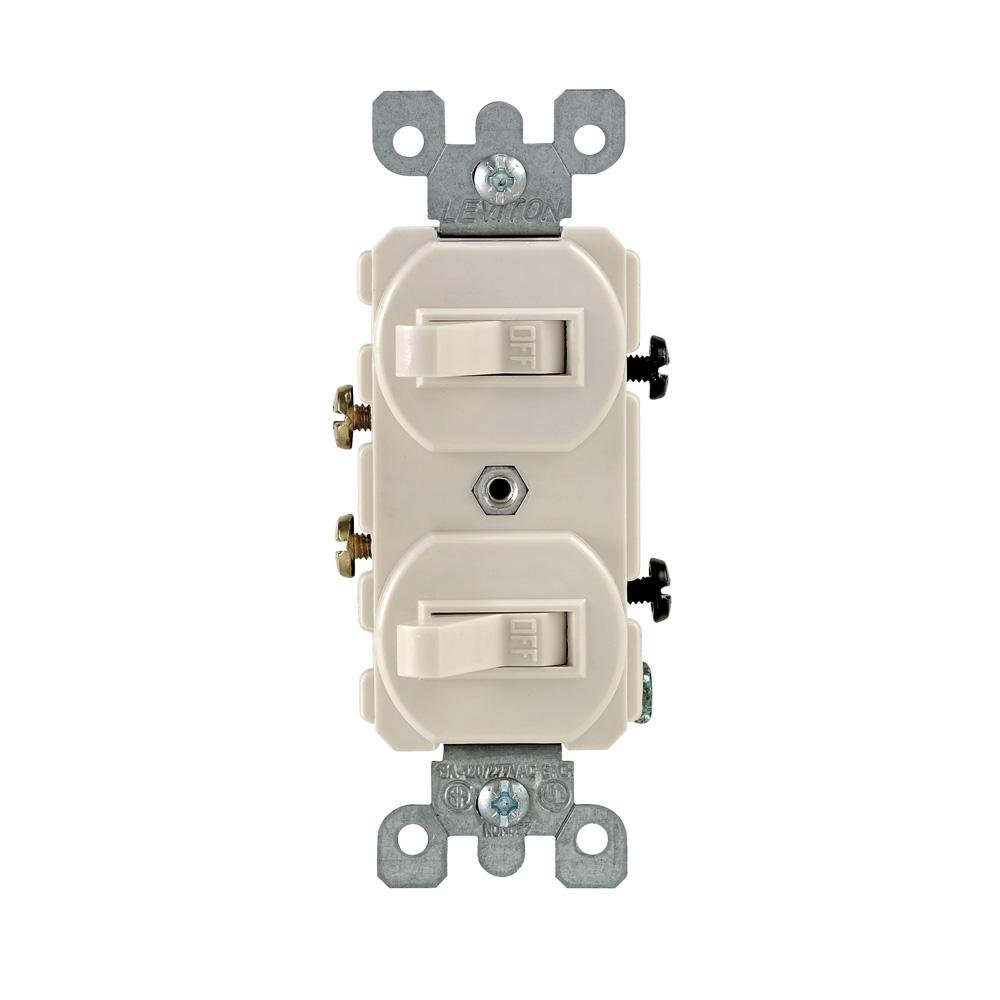

Leviton 5224-2 - Duplex Style Single-Pole / Single-Pole Combination Switch

Leviton | Leviton Switches | Products |
SKU: 5224-2W

  • $14.03
    Unit price per
  • Save $7.89

15 Amp, 120/277 Volt, Duplex Style Single-Pole / Single-Pole AC Combination Switch, Commercial Grade, Grounding, Side Wired

With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.


Product Features

AC Horsepower Ratings
HP Rating: 1/2HP-120V 2HP-240V-277V
Max. Amperage: 12 Amp

Electrical Specifications
Amperage: 15 A
Dielectric Voltage: Withstands 1500V for 1 minute
Grounding: Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Pole: 1
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120/277 VAC

Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C

Material Specifications
Actuator Material: Thermoplastic
Body Material: Thermoplastic
Color: White
Strap Material: Steel

Mechanical Specifications
Product ID: Stamped on Strap
Terminal Accom.: 14-12 AWG
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Side
Torque Range: 14 – 18 in.-lbs

Product Features
Amperage: 15 A
Color: White
Feature: Single-Pole / Single-Pole
HP Rating: 1/2HP-120V 2HP-240V-277V
Product Type: 2-Switch Combo
Type: Duplex Style Combination Switch
Voltage: 120/277 VAC
Warranty: 2-Year Limited

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Standard: UL 20
Warranty: 2-Year Limited



Downloads

DIMENSIONAL DATA

INSTRUCTION SHEET

PRODUCT CLEANING INSTRUCTIONS
