Emcod ES30-12UD Series Class 2 Electronic UNIV 5 in 1 dimming - Ready Wholesale Electric Supply and Lighting

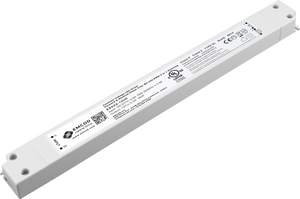

Emcod ES100-12UD Series Class 2 Electronic UNIV 5 in 1 dimming

EMCOD ES-UD Series | EMCOD Lighting - LED drivers, Lighting and Transformers | Products |
SKU: Emcod-ES100-12UD

  • $133.40
    Unit price per
  • Save $133.40

Plastic Suitable For Dry And Damp Location Enclosure

Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads: Terminal Block
Output leads: Terminal Block


Housing
The actual transformer 30W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with wire compartment, IP 20 rated
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded
Dimensions (inch): H = 12.7, W = 1.18, D = 0.85
Weight (LBs): 0.73


Single Circuit: 12VDC 20kHZ PWM
Total Wattage: 100W max
Input Voltage: 100-277V 50/60Hz


Product Specifications
Installation Guide
