EMCOD - EM300S12AC Transformer - Magnetic LED Driver - 300W - 12VAC

EMCOD Lighting - LED drivers, Lighting and Transformers | EMCOD ML - MAG-LED Series | Products |
SKU: EM300S12AC

  • $121.80
    Unit price per
  • Save $121.80

Class 2 Magnetic LED AC Driver Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure

4008104
Conforms to UL STD. 1310
Certified to CSA
STD. C22.2 № 223
model EM300

Link to certification

Spec Sheet

Installation Instructions

Transformer

Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads are 12AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 5A
Magnetic manually reset secondary breaker 25A

Housing

The actual transformer 300W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8, W = 4.1, D = 3.24
Weight (LBs): 8.3

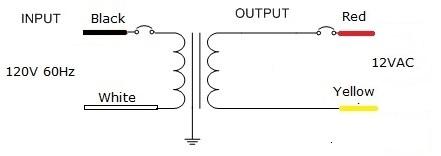

Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 3A at full load
Output voltage without load: 12.7VAC
Output voltage fully loaded: 11.5VAC
Max. Total Wattage: 300W
Max. Output Current: 25A
Efficiency: 93%
