EMCOD EMT900-E - 900W 12/15V AC - Landscape Multi-Tap Magnetic Transformer - Powder Coated Black Steel - Ready Wholesale Electric Supply and Lighting

EMCOD EMT900-E - 900W 12/15V AC - Landscape Multi-Tap Magnetic Transformer - Powder Coated Black Steel

EMCOD EMT Economy Landscape Multi-Tap Magnetic Transformer | EMCOD Lighting - LED drivers, Lighting and Transformers | Products |
SKU: EMT900-E

  • $342.20
    Unit price per
  • Save $342.20



Conforms to UL STD. 1838
Certified to CSA
STD. C22.2 № 250.0, 250.7

Spec Sheet

Installation Instructions

Magnetic Outdoor Non Dimmable MT
Black Powder Coated Steel Enclosure

Transformer

Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Input leads: Line cord
Output leads: Terminal Block
Magnetic manually reset secondary breaker 25A per circuit
Timer and photocell build in options

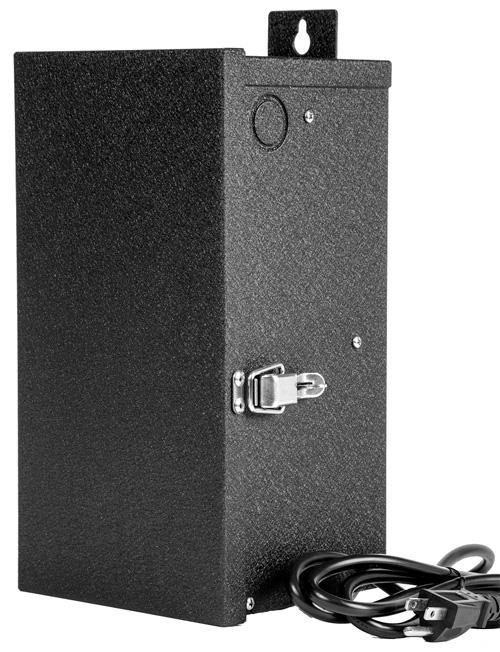

Housing

The actual transformer 900W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Wiring compartment has 10 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 15.75, W = 7.87, D = 7
Weight (LBs): 3.8

Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 7.5A at full load
Output voltage without load: 12/ 13/ 14/ 15VAC
Output voltage fully loaded: 11.5/ 12.5/ 13.5/ 14.5VAC
Max. Total Wattage: 900W Max. per circuit:300W
Max. Output Current: 25/ 23/ 21/ 20A per circuit.
Efficiency: 94%
Load regulation: 4%

If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
